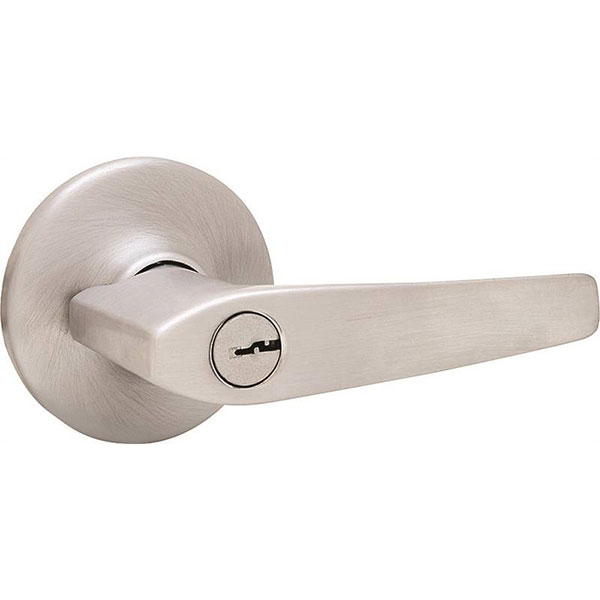

ENTRY LOCK - KWIKSET LEVER SATIN

For keyed exterior doors. Both levers lock or unlock by key outside or turnbutton inside. Maximum Security locksets feature 2x strength full 1" throwbolt maximum security strike, and free-spinning guard. DOOR PREP: 2-1/8" Cross Bore, 1" Edge Bore, 1" x 2-1/4" Latch Face. BACKSET: 2-3/8" standard, 2-3/4" optional. DOOR THICKNESS: 1-3/8" to 1-3/4". CYLINDER: 5-pin. FACEPLATE: 1" x 2-1/4" round corner. STRIKES: 2-1/4" full lip round corner. BOLT: 1/2" throw. HANDING: Non-handed. ANSI/BHMA: Grade 3.

• Backset: 2-3/8" - 2-3/4"
• Crossbore Size: 2-1/4" - 2-1/8"
• Dial Location: Left or Right Hand
• Material: Metal
• Finish: Satin Chrome
• Number of Pins: 5
• Overall Length: 3-5/8"
• Pin Type: Cylinder
• Grade: 3
• Overall Width: 2-5/8"
• Overall Depth: 2-15/32"
• Standards: ANSI Approved | BHMA Certified
• Special Features: 1" Edge Bore
• Plate Size: 1 x 2-1/4"
