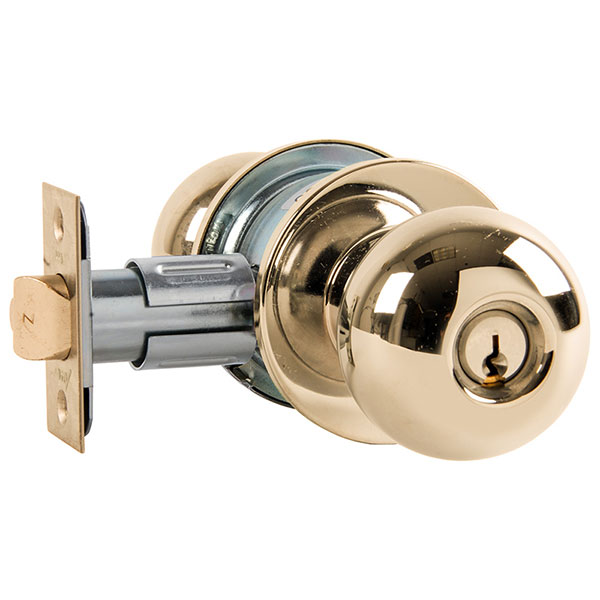

ENTRY LOCK - ARROW CYLINDRICAL
1014183

ENTRY LOCK - ARROW CYLINDRICAL

  • Lock chassis cold rolLED steel with zinc dichromate finish for corrosion resistance. requires standard 2-1/8" (53.97mm) bore through door.

Please Login to see your pricing for this product.

Product Details

Cylinder, standard solid brass 6 pin cylinder with arrow keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed.
  • Backset 2-3/8" (60.32mm) standard. 2- 3/4" (69.85mm), 3- 3/4" (95.25mm) and 5" (127mm) available.
  • Door thickness 1-3/8" (34.92mm) to 1- 3/4" (44.45mm). Latch brass with 1/2" (12.7mm) throw.
  • Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225mm) bore in edge of door is required.
  • Latch front brass, bronze or stainless steel. Standard faceplate for 2-3/8" (60.32.mm) backset measures 2 1/4" (57.15mm) x 1" (25.40mm) with a flat front, for 2- 3/4" (69.85mm) backset standard faceplate measures 2 1/4" (57.15mm) x 1-1/8" (28.57mm) with beveled front 1/8" (3.17mm) in 2" (50.8mm).
  • Strike "" brass, bronze or stainless steel. Standard strike measures 2- 3/4" (69.85mm) x 1-1/8" (28.57mm). Optional ansi a115.1 strike measures 4-7/8" (123.82mm) x 1 1/4" (31.75mm). All strikes have a 1 1/4" (31.75mm) lip to center dimension.
  • Handing reversible.

Additional Information

Part Number: 1014183
MFG Part Number:
Weight: 0.00 LB
Height: 0.00
Depth: 0.00
Width: 0.00
Size:
Product PDF:
Extra Details:
