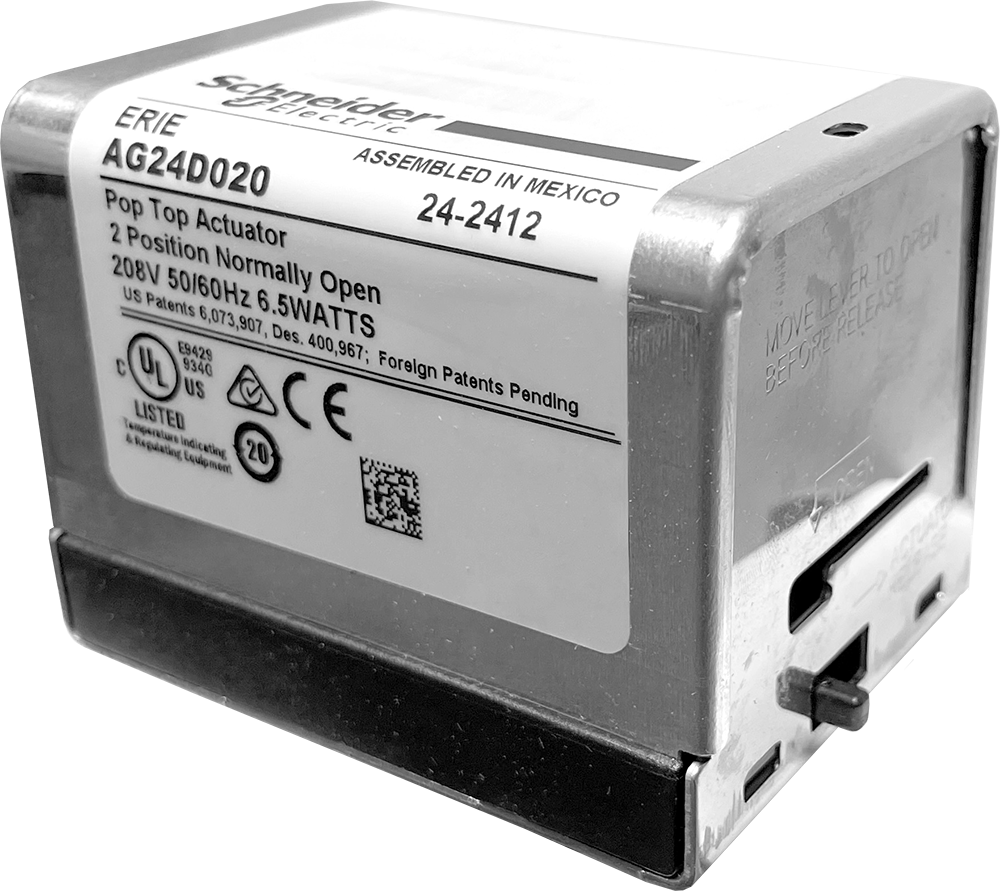

VALVE - ERIE 208V ACTUATOR OPEN

Driving an Erie zone valve open and closed on a call from the thermostat, this 208V Erie actuator is a spring-return, two-position power head that mounts onto a matching Erie valve body. On a call for heat or cooling, the synchronous motor drives the valve and the spring returns it to its normally open position when power is removed, giving positive, general close-off control of the zone. Built for the high temperatures of hydronic systems and wired with 18" leads, it snaps onto the body with a tool-free top so it can be installed or replaced in minutes without draining the system. As a normally open actuator, the valve stays open until the actuator is powered, closing the zone on a call.

Key Features:

• 208V Spring-Return -- A 208V synchronous motor drives the valve with spring return to the normally open position.
• General Close-Off -- Positive two-position (on/off) control of a hydronic zone.
• Normally Open -- The valve is open when de-energized and closes on a powered call.
• Tool-Free Snap-On Mount -- Snaps onto a matching Erie body without draining the system.
• 18" Leads, High-Temp -- Built for hydronic system temperatures with 18" wiring leads.

Where to Use:

• Hydronic zone control -- Opening and closing heating and cooling zones on a thermostat call.
• Boiler & fan-coil systems -- Powering zone valves in baseboard, radiant, and fan-coil loops.
• HVAC service -- Adding or replacing a zone valve power head.
