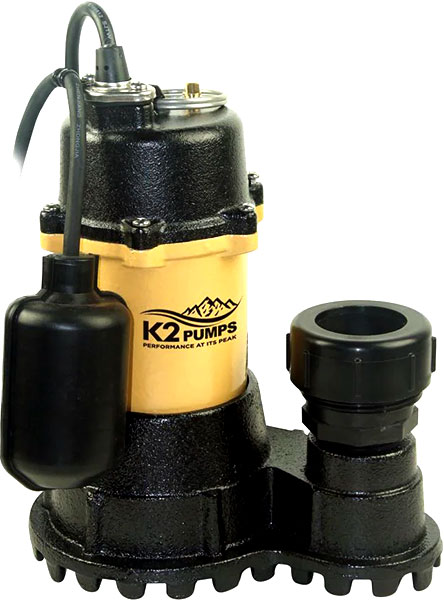

SUMP PUMP - 1/2 HP HD SUBMERSIBLE

The K2 1/2 HP Submersible Sump Pump is designed for home sump pump applications with a 14 in. Dia or larger sump pit. The pump is constructed of heavy duty cast iron and comes with a tethered float switch for reliable and maintenance-free operation. It also comes standard with an innovative Quick-Connect Fitting for easier and quick installation. The pump has a non-clog vortex impeller and an energy efficient PSC oil free motor with thermal overload protection.

Application:

• Submersible sump pump for typical residential applications
• Voltage: 115
• Hertz: 60
• Phase: Single
• RPM: 3450RPM
• Motor type: Permanent Split Capacitor (PSC)
• Insulation Class: B
• Circuit requirments: 15 AMP
• Duty rating: Continuous*
• Shaft seal: Mechanical seal
• Motor Shaft: Stainless steel
• Upper motor bearing: Ball bearing
• Lower motor bearing: Ball bearing
• Cooling: Water cooled
• Motor protection: Auto reset thermal overload protector

*For continuous,the water depth must be at least 6” to prevent the motor from overheating

Pump Specifications:

• Discharge size: 1-1/2"FNPT (with1-1/2” Quick Connect Fitting
• Cord Length: 10'
• Cord type: SJTW 18AWG/3C, UL list
• Pump Housing: Cast iron
• Pump Base: Cast iron
• Impeller material: Reinforced thermoplastic
• Gasket: Rubber
• Solids: handling 1/4"spherical
• Liquid temp.range: 32°-95°F
• Operation: Automatic
• Fasteners: Stainless steel

Automatic Switch Specifications:

• Type: Wide Angle Tethered
• Switch on point: 14.6"
• Switch off point: 6.3"
• Material: Reinforced Thermoplastic
• Cord Length: 10'
• Cord type: SJOW 18AWG/2C, UL list
• Sump basin: Min. 14 in. (356 mm) diameter, 18" (457 mm) depth
