SUMP PUMP - 3/4 HP SUBMERSIBLE HD
1009048

SUMP PUMP - 3/4 HP SUBMERSIBLE HD

  • Amperage (amps): 6.3
  • Cord Length (ft.): 10
  • Discharge Flow @ 0 ft. (gallons/hour): 5200
  • Discharge Flow @ 0 ft. (gallons/min): 87
  • Discharge Flow @ 10 ft. (gallons/hour): 4080
  • Discharge Flow @ 10 ft. (gallons/min): 68
  • Discharge Flow @ 15 ft. (gallons/min): 58
  • Features: Submersible
  • Housing Material: Cast-Iron
  • Impeller Material: Rubber
  • Maximum Horsepower (hp): 3/4
  • Maximum Pressure (psi): 40
  • Maximum Working Temperature (F): 95
  • Minimum Sump Basin Diameter: 14 1/2 to 17 7/8
  • Minimum working temperature (F): 32
  • Outlet Diameter Connection (in.): 1-1/2 FPT
  • Power Type Required: AC
  • Product Weight (lb.): 28.8
  • Pump Switch Type: Vertical
  • Vertical Lift (ft.): 28
  • Voltage: 115v

Please Login to see your pricing for this product.
You may also be interested in:
HOSE KIT - SUMP PUMP 1-1/4"
1004379 HOSE KIT - SUMP PUMP 1-1/4"

Product Details

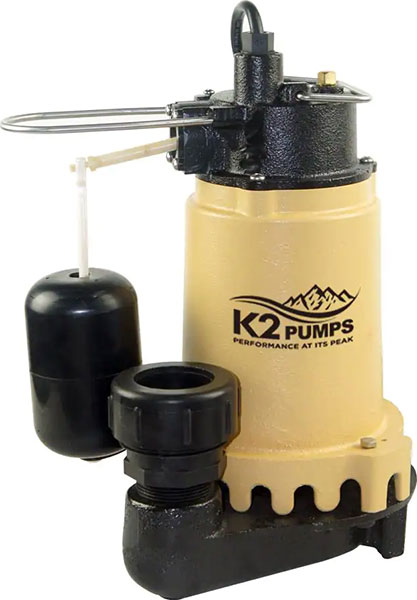

The K2 3/4 HP Submersible sump pump is designed for home sump applications. Use this pump only for pumping water. The pump is constructed of heavy duty cast iron and comes with a vertical snap-action float switch for reliable and maintenance-free operation. Top suction design filters debris and minimizes clogging and reduce airlock. It can fit into a 10 in. Dia or larger pit. The pump has a maximum pumping capability up to 5200 GPH. For easy installation, the pump has a 1-discharge or 1-with adapter.
  • Product Depth (in.): 7.08
  • Product Height (in.): 11.6
  • Product Width (in.): 9.2
  • Switch-Off Height (in.): 9.25
  • Switch-On Height (in.): 4.53
