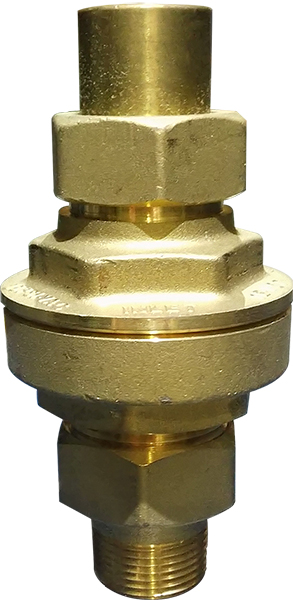

STEAM TRAP - MEPCO 1/2" VERTICAL

Draining condensate and venting air from a steam radiator while holding back live steam, this Mepco 1/2" vertical thermostatic steam trap installs at the outlet of a two-pipe steam radiator to keep the heating loop working efficiently. Its thermostatic element opens when cooler air and condensate reach it and closes tight against hot steam, so the radiator fills completely and condensate returns to the boiler instead of backing up. Rugged brass construction with a union connection makes it easy to install and service, and it is rated from 25" Hg vacuum up to 25 psi for standard and vacuum steam systems. As a vertical trap, it fits the matching radiator outlet piping, and it is a direct replacement for restoring proper steam distribution and quiet, even heat.

Key Features:

• Thermostatic Steam Trap -- Opens on air and condensate, closes tight against live steam for efficient heating.
• Vertical Pattern -- Fits the vertical radiator outlet connection.
• Returns Condensate -- Discharges condensate and air so the radiator fills fully and returns water to the boiler.
• Vacuum to 25 psi -- Rated from 25" Hg vacuum up to 25 psi for standard and vacuum steam systems.
• Serviceable Brass Union -- Rugged brass body with a union connection for easy install and service.

Where to Use:

• Steam radiators -- Trapping the outlet of two-pipe and vacuum steam radiators.
• Vacuum steam systems -- Restoring proper condensate and air handling in Vari-Vac and similar loops.
• Heating maintenance -- Replacing a failed radiator trap to restore quiet, even heat.
