Sheet Metal Screws

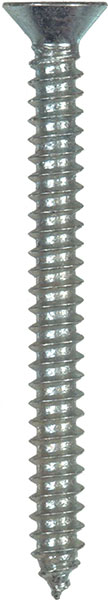

Sheet metal screws cut their own threads into thin metal, so panels, brackets, ductwork, and enclosures go together fast with just a driver. This group covers 31 sizes of flat head Phillips sheet metal screws, from #4 to #14 gauge and 1/2" to 3" long. The flat head sits flush with the surface, and the Phillips drive works with standard bits and power drivers.

Key Features:

• Self-Tapping Sheet Metal Threads -- Thread themselves into thin metal and other sheet materials.
• Flat Head -- Sits flush for a clean, low-profile finish.
• Phillips Drive -- Installs with standard Phillips bits and power drivers.
• Six Gauges -- #4, #6, #8, #10, #12, and #14 to match the application.
• 1/2" to 3" Lengths -- Short through long sizes for thin and stacked materials.

Where to Use:

• HVAC and ductwork -- Fastening duct, flashing, and sheet metal assemblies.
• Equipment and enclosures -- Attaching panels, covers, and brackets.
• Maintenance and repair -- General fastening in thin metal, plastic, and wood.

Available Sizes (SKU -- Size):

• 1008404 -- #4 x 1/2"
• 1008405 -- #4 x 3/4"
• 1008407 -- #6 x 1/2"
• 1008410 -- #6 x 3/4"
• 1008406 -- #6 x 1"
• 1008408 -- #6 x 1-1/2"
• 1008413 -- #8 x 1/2"
• 1008420 -- #8 x 3/4"
• 1008412 -- #8 x 1"
• 1008415 -- #8 x 1-1/4"
• 1008414 -- #8 x 1-1/2"
• 1008417 -- #8 x 2"
• 1008418 -- #8 x 2-1/2"
• 1008384 -- #10 x 3/4"
• 1011156 -- #10 x 1"
• 1008386 -- #10 x 1-1/4"
• 1008385 -- #10 x 1-1/2"
• 1008381 -- #10 x 2"
• 1008387 -- #10 x 2-1/2"
• 1008391 -- #12 x 3/4"
• 1008388 -- #12 x 1"
• 1008389 -- #12 x 2"
• 1008395 -- #12 x 2-1/2"
• 1008390 -- #12 x 3"
• 1008400 -- #14 x 3/4"
• 1008397 -- #14 x 1"
• 1008402 -- #14 x 1-1/4"
• 1008401 -- #14 x 1-1/2"
• 1008398 -- #14 x 2"
• 1010451 -- #14 x 2-1/2"
• 1009679 -- #14 x 3"
