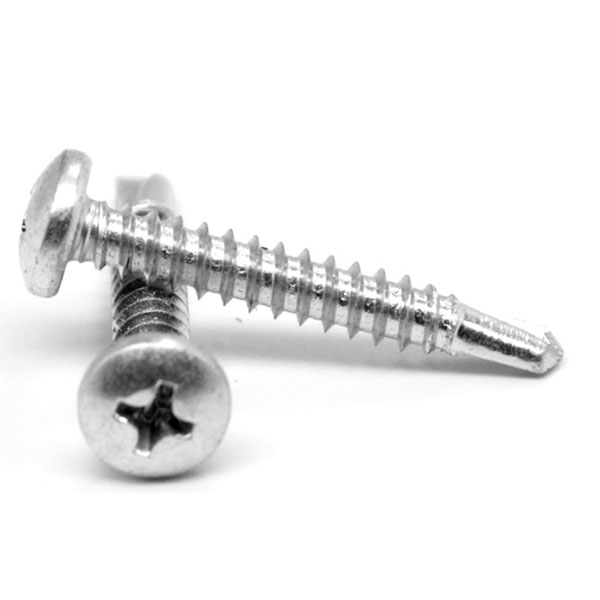

PHILLIPS PAN HEAD DRILL SCREWS

Phillips pan head drill screws drill their own pilot hole as they are driven, which saves a separate drilling step on every fastener. The low-profile pan head and Phillips drive work with standard bits and power drivers, and this group covers 17 sizes from #6 to #12 gauge and from 3/8" to 3" long, so crews and maintenance shops can pick the screw that fits the job.

Key Features:

• Self-Drilling Point -- Drills its own pilot hole as it is driven, with no separate drilling step.
• Pan Head -- Rounded, low-profile head that seats cleanly against the surface.
• Phillips Drive -- Installs with standard Phillips bits and power drivers.
• Wide Size Range -- Seventeen sizes from #6 to #12 gauge and 3/8" to 3" lengths.
• Fine to Coarse Threads -- Thread sizes include 6-20, 8, 10, 10-16, and 12-14.

Where to Use:

• Maintenance and repair -- Everyday fastening where a pre-drilled hole is not wanted.
• HVAC and sheet metal -- Assemblies and attachments that call for a pan head.
• Light fabrication -- Shop and field fastening in a range of lengths.

Available Sizes (SKU -- Size):

• 1011279 -- #6-20 x 3/8"
• 1008924 -- #6-20 x 1/2"
• 1008941 -- #8 x 1/2"
• 1009675 -- #8 x 5/8"
• 1008946 -- #8 x 3/4"
• 1008945 -- #8 x 1-1/4"
• 1008943 -- #8 x 1-1/2"
• 1008904 -- #8 x 2"
• 1008902 -- #10 x 1"
• 1011056 -- #10 x 2"
• 1008906 -- #10-16 x 1/2"
• 1011280 -- #10-16 x 5/8"
• 1008914 -- #10-16 x 3/4"
• 1014213 -- #10-16 x 3"
• 1008921 -- #12-14 x 3/4"
• 1008915 -- #12-14 x 1"
• 1008916 -- #12-14 x 1-1/2"
