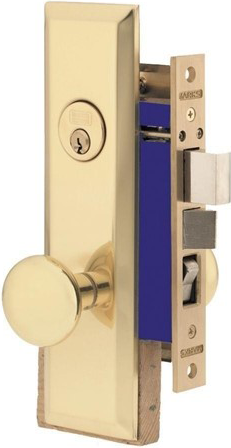

MORTISE LOCK - MARKS #1LH BRASS
1001676

MORTISE LOCK - MARKS #1LH BRASS

  • Type: Mortise lock body
  • Series: Marks Metro 114
  • Function: Entrance
  • Handing: Left-Hand
  • Backset: 2-1/2"
  • Material: Brass trim; steel case
  • Accepts: Standard mortise cylinder
  • Application: Commercial/apartment door locking

Please Login to see your pricing for this product.

Product Details

Securing a commercial or apartment door, this Marks Metro 114 mortise lock is a heavy-duty entrance-function lock that seats in a pocket cut into the edge of a left-hand door, delivering the strength and security that make mortise locks the standard for high-use entries. In the entrance function the door is latched by the knob from either side until the outside is locked by a stop button or key, after which it opens by key outside and knob inside, with a deadbolt thrown by key outside and a turnpiece inside that deadlocks the latch. The lock body carries the latch and deadbolt in one rugged steel case for far more security than a bored knob lock, it is built for a left-hand door, and Thru-bolted solid brass knobs and plates with a cast-brass 1-inch-throw deadbolt. It accepts a standard mortise cylinder. It is a commercial-grade lock for mortise-prepped doors.

Key Features:
  • Marks Metro 114 Mortise Lock -- A heavy-duty entrance-function lock body for commercial and apartment doors.
  • Entrance Function -- The door is latched by the knob from either side until the outside is locked by a stop button or key, after which it opens by key outside and knob inside, with a deadbolt thrown by key outside and a turnpiece inside that deadlocks the latch.
  • Mortise Case Strength -- The latch and deadbolt sit in one steel case pocketed in the door edge -- far stronger and harder to defeat than a bored knob lock.
  • Left-Hand Door -- Handed and built for a left-hand door, so the latch bevel and lock function face the correct way -- verify the door swing before ordering or installing.
  • Solid Brass Trim -- Thru-bolted solid brass knobs and plates with a cast-brass 1-inch-throw deadbolt.
Where to Use:
  • Commercial doors -- Entrance locking on high-use entries.
  • Apartments & institutions -- Durable entry and unit-door hardware.
  • Lock replacement -- Replacing a worn mortise lock body.

Additional Information

MarksUSA logo-300px
Part Number: 1001676
MFG Part Number:
Weight: 0.00 LB
Height: 0.00
Depth: 0.00
Width: 0.00
Size:
Product PDF:
Extra Details:
