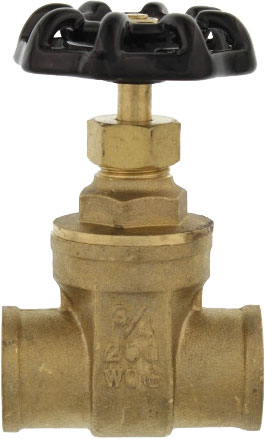

GATE VALVES CXC & IPS

Fully opening or closing a line with minimal flow restriction, these brass gate valves raise and lower an internal wedge gate to give a straight-through, full-bore path when open and a positive shutoff when closed. Turned by a handwheel through several turns, a gate valve is built for isolation -- fully open or fully closed -- rather than throttling, and when open it adds almost no resistance to flow, which suits mains, risers, and branch lines where a low pressure drop matters. They come with copper sweat (CxC) ends that solder into copper pipe or threaded iron-pipe-size (IPS) ends for steel and brass pipe, in sizes from 1/2" to 2". Durable brass construction makes them a long-service choice for isolating sections of a water system for maintenance.

Key Features:

• Full-Bore, Low Restriction -- An internal gate lifts clear for a straight-through path that barely restricts flow when open.
• Positive Isolation Shutoff -- Closes the gate fully for a tight shutoff; built for isolation, not throttling.
• Handwheel Operation -- A multi-turn handwheel opens and closes the gate gradually.
• Sweat or Threaded -- Copper sweat (CxC) ends to solder, or threaded IPS ends for steel and brass pipe.
• Sizes 1/2" to 2" -- A range of sizes for mains, risers, and branch lines.

Where to Use:

• Line isolation -- Fully opening or shutting off mains, risers, and branch lines for service.
• Plumbing & mechanical -- Low-restriction isolation on water and service piping.
• Service & repair -- Shutting off a section of the system for maintenance.

Available Sizes (SKU -- Size):

• 1003634 -- Cxc 1/2"
• 1003642 -- Cxc 3/4"
• 1003643 -- Cxc 1"
• 1003645 -- Cxc 1-1/2"
• 1003646 -- Cxc 2"
• 1003647 -- Ips 1/2"
• 1003648 -- Ips 3/4"
• 1003650 -- Ips 1-1/4"
• 1003651 -- Ips 1-1/2"
