1003535

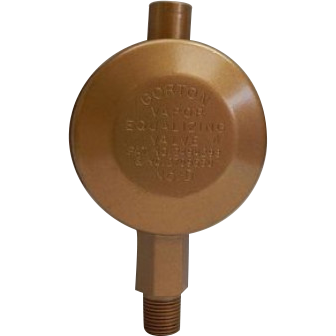

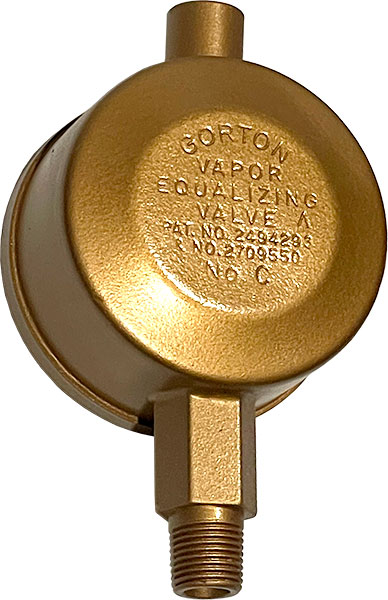

AIR VALVE - #C GORTON 1/8 VERTICAL
- Part #: GORC01
- Type: Steam radiator air vent, vapor-equalizing
- Application: One-pipe steam radiators
- Connection: 1/8 in. NPT vertical
- Adjustable: No (fixed orifice, size C)
- Venting Capacity: Size C -- one of the larger fixed radiator sizes
- Type Detail: Fixed-orifice, one-pipe steam
Please Login to see your pricing for this product.
You may also be interested in:
1003531
AIR VALVE - #C GORTON 1/8 ANGLE
1004394
TAPE - TEFLON 3/4" X 520"
Product Details
This 1/8 in. vertical vapor-equalizing steam radiator air vent uses a fixed orifice to purge air from a one-pipe steam radiator so steam can fill it, then closes when steam reaches it. As one of the larger fixed sizes (C), it vents quickly -- suited to radiators farther from the boiler or in colder rooms.
Key Features:
Key Features:
- Automatic Air Venting -- Opens to release air on a steam call and closes when steam reaches the valve.
- Fixed Vapor-Equalizing Orifice -- Non-adjustable C-size orifice; a mid-to-high venting rate, for balancing heat across a system.
- For Distant/Cold Radiators -- Larger fixed sizes go on radiators farther from the boiler for even heat.
- 1/8 in. NPT Vertical Connection -- Threads into the radiator vent tapping (vertical).
- One-Pipe Steam -- For low-pressure one-pipe steam radiator service.
- Building maintenance -- Replacing failed, noisy, or spitting air vents on one-pipe steam radiators and convectors
- Steam system balancing -- Sizing vents by distance from the boiler so radiators heat evenly across the building
- Property heating upkeep -- Seasonal vent replacement in apartment buildings and older steam-heated properties
