1003581

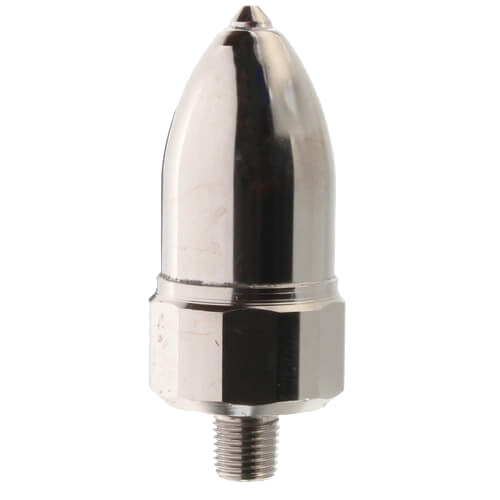

AIR VALVE - #43 1/4" STRAIGHT HOFFMAN
- Part #: 401458
- Type: Steam convector air vent
- Application: One-pipe steam convectors and small systems
- Connection: 1/4 in. NPT straight
- Adjustable: No (single fixed port)
- Max Operating Pressure: 6 psig
- Max Pressure: 10 psig
- Feature: Telescopic siphon tube with angle cut for drainage
- Type Detail: Float-type, non-vacuum
Please Login to see your pricing for this product.
You may also be interested in:
1004394
TAPE - TEFLON 3/4" X 520"
Product Details
This 1/4-inch straight steam air vent purges air from a one-pipe steam convector so steam can enter, then closes when steam reaches it. The larger 1/4-inch shank and telescopic siphon tube with an angle cut assure drainage back into the convector.
Key Features:
Key Features:
- Automatic Air Venting -- Opens to release air, then closes when steam or heat reaches the valve.
- Telescopic Siphon Tube -- Angle-cut tube assures drainage back into the convector, preventing spitting.
- Non-Adjustable Port -- Single fixed orifice for small steam systems and convectors.
- 1/4 in. NPT Straight Shank -- Larger straight shank threads into a convector heating element.
- Pressure Rating -- Maximum operating pressure 6 psig; maximum pressure 10 psig; non-vacuum.
- Building maintenance -- Replacing failed, noisy, or spitting air vents on one-pipe steam radiators and convectors
- Steam system balancing -- Sizing vents by distance from the boiler so radiators heat evenly across the building
- Property heating upkeep -- Seasonal vent replacement in apartment buildings and older steam-heated properties
Additional Information
| Part Number: | 1003581 |
|---|---|
| MFG Part Number: | |
| Weight: | 0.00 LB |
| Height: | 0.00 |
| Depth: | 0.00 |
| Width: | 0.00 |
| Size: | |
| Product PDF: | |
| Extra Details: |
