2' - 4' LED FIXTURES

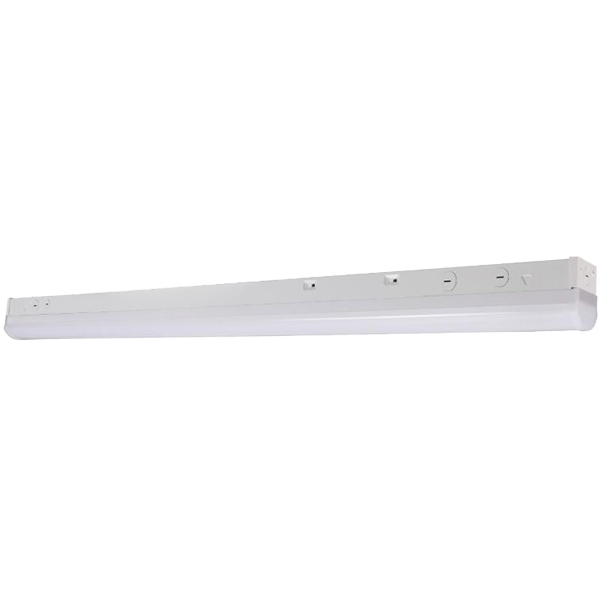

One fixture that can be dialed in to the job saves stocking a dozen part numbers -- and the Honya LS8060 LED linear strip is built exactly that way. A single fixture offers field-selectable wattage and five selectable color temperatures (3000K to 6500K), so crews set brightness and light color on site instead of ordering another SKU. UL damp-location rated with an aluminum heatsink and PC lens, it runs on universal 120-277V power, dims with 0-10V controls, and holds over 70% output past 50,000 hours. Available in 2' and 4' lengths, with optional microwave motion sensing and a 90-minute emergency backup driver, it covers offices, schools, hospitals, hallways, stairwells, and workshops from one product line.

Key Features:

• Selectable Wattage & 5 CCT -- Field-adjustable wattage and five color temperatures (3000K/3500K/4000K/5000K/6500K) set brightness and color on site.
• Universal Voltage, 0-10V Dimming -- Runs on 120-277V and dims smoothly with standard 0-10V controls.
• UL Damp Rated -- Damp-location rated with an aluminum heatsink and PC lens for reliable commercial and industrial use.
• Emergency & Motion Options -- Available with a 90-minute emergency backup driver and/or an integrated microwave motion sensor with remote setup.
• Long Life -- Maintains over 70% output past 50,000 hours at 80+ CRI with a 120-degree beam.

Where to Use:

• Commercial buildings -- Offices, schools, and hospitals needing tunable, code-ready linear lighting.
• Circulation & egress -- Hallways and stairwells where emergency and motion options add safety and savings.
• Industrial spaces -- Workshops and back-of-house areas needing durable, damp-rated strips.

Available Configurations (SKU -- Description):

• 1016340 -- 2' slim strip (5CCT)
• 1016298 -- 2' with motion sensor (5CCT)
• 1016385 -- 2' with 90-min emergency battery (5CCT)
• 1016387 -- 2' with emergency battery + motion sensor (5CCT)
• 1016453 -- 4' slim strip (5CCT)
• 1016306 -- 4' with 90-min emergency battery (5CCT)
