TESTER - 10 RANGE MULTIMETER

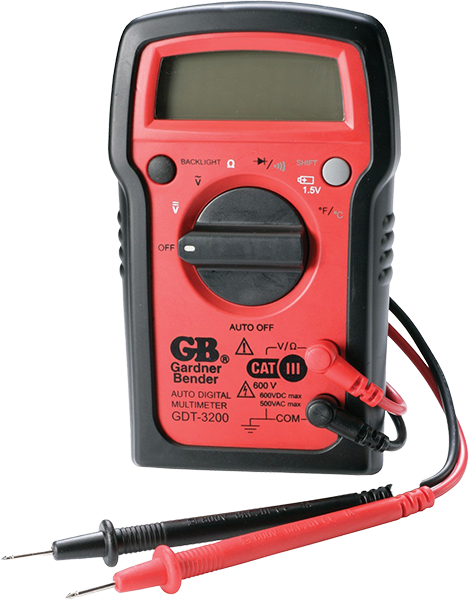

Electricians and maintenance technicians need one meter that handles the full range of daily electrical troubleshooting -- and the Gardner Bender GDT-3200 adds temperature and battery testing to the usual voltage, resistance, and continuity checks. This 7-function auto-ranging digital multimeter has an easy-to-read 3.5" backlit LCD (2000 count) and a magnetic holding strap that makes it ideal for automotive, appliance, circuit-breaker, and other hands-free work. A protective rubber boot with tilt-out stand, wrap-around lead holders, and snap-in probes spaced to fit a standard outlet make one-handed testing quick and easy -- and the housing is drop-resistant to 6 ft and crush-rated to 150 lbs.

Key Features:

• 7 Functions -- Auto-Ranging -- Tests AC voltage, DC voltage, resistance, diode, continuity, temperature, and 1.5V battery -- 8-position auto-ranging dial selects the range automatically for precise readings.
• AC 500V / DC 600V / 20 MΩ -- AC voltage to 500V, DC voltage to 600V, and resistance to 20 mega-ohms -- covers a wide range of electrical diagnostics.
• Temperature & Battery Testing -- Built-in temperature probe (32°F to 482°F) and 1.5V battery test extend the meter beyond basic electrical checks.
• Backlit 2000-Count LCD -- Easy-to-read 3.5" backlit LCD with a data-hold feature that captures the reading on the display.
• Magnetic Strap -- Hands-Free -- Magnetic holding strap and snap-in probes (spaced to fit a standard outlet) enable one-handed, hands-free testing.
• Rugged, Drop & Crush Rated -- Protective rubber boot with tilt-out stand and wrap-around lead holders; drop-resistant to 6 ft and crush-rated to 150 lbs.
• CAT III 600V Safety Rated -- Rated CAT III 600V; conforms to UL 61010-1 and certified to CAN/CSA C22.2 (ETL and CE). Audible continuity and low-battery indicator with auto-off.
• Ready to Use -- Includes replaceable 26" test leads, magnetic strap, 2 AAA batteries, and operating instructions.

Where to Use:

• Electrical troubleshooting -- Diagnosing circuits, outlets, switches, and breakers in commercial and residential buildings
• Automotive and appliance service -- Hands-free voltage, resistance, and battery testing on vehicles and appliances
• HVAC and equipment maintenance -- Temperature and electrical measurements during equipment servicing
• General field use -- Everyday testing for electricians and maintenance staff across managed properties

Technical Information:

• Continuity: Audible
• Display: 3.5" backlit LCD, 2000 count
• Input Impedance: 10 MΩ
• Features: Data hold, magnetic strap, tilt-out stand, wrap-around lead holders, snap-in probes
• Test Leads: Replaceable, 26"
• Durability: Drop-resistant to 6 ft; crush-rated to 150 lbs
• Safety Rating: CAT III 600V; UL 61010-1, CAN/CSA C22.2 (ETL, CE)
