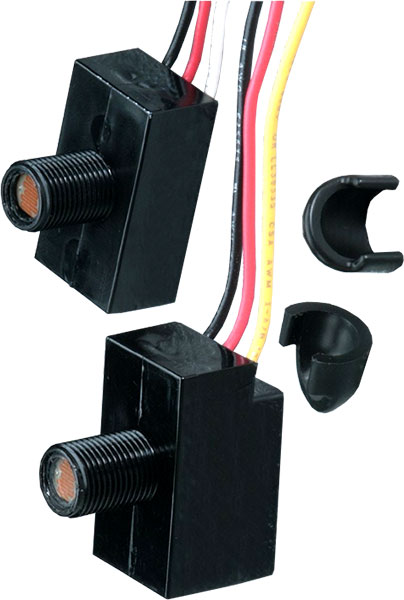

SWITCH - PHOTO OUTDOOR BUTTON
1012943

SWITCH - PHOTO OUTDOOR BUTTON

  • Color: Black
  • Dimensions: 2.05" L x 1.14" W x 1.62" H
  • Material: Polycarbonate
  • Specifications: 120 V 1100 VA Ballast Load Rating 1800 W 1.5 Fc Turn On 51 Off/On Ratio
  • Type: Button Style

Please Login to see your pricing for this product.

Product Details

Electrical components and ultraviolet stabilized polycarbonate. For control of porch lights or outdoor floodlights. 1800 W, direct-wire. UL and CSA listed.
  • Tyco Electronics AA Series offers a unique button style design for internal post fixtures or mounting applications
  • 3/4" long threaded nipple
  • Tyco Electronics innovative design with the wire leads exiting from the rear allow the control to be placed in tight locations while positioning the wiring for easy access
  • The AA Series photo control is constructed of a high-impact UV-stabilized polycarbonate housing for excellent quality
  • SPST thermal bi-metallic switch
  • 1/2 in cadmium sulfide cell light sensor
  • -40 to 65 deg C temperature range
