1003716

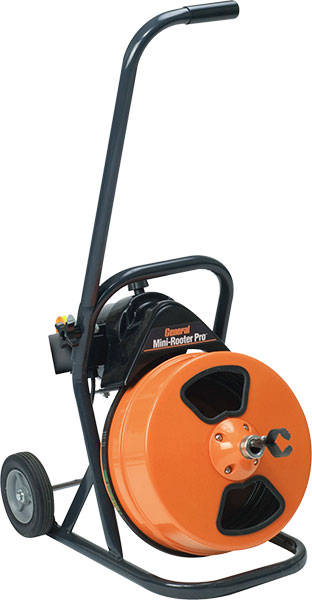

SNAKE MACHINE - GENERAL MINI ROOTER
- 1/2" x 75' cable & a 1/3 HP motor
- Holds 75' of 3/8" or 50' of 1/2" flexicore ®
- Mrcs 4-pc. cutter set
- 10' power cord with GFCI and leather gloves
- Remove the drum in seconds for more portability or switch to a different diameter cable- with no mess and no lost time
- Distributor tube inside the drum allows you to feed cable in and out without chucking and releasing the cable every few feet so you finish quicker
- Foot pedal that uses air pressure to start and stop the machine, with no electrical wiring between pedal & motor
- Ground fault circuit interrupter, and a high impact plastic guard covering the motor pulley
- Heavy gauge wire coiled tightly around 49-strand aircraft- type wire rope and heat treated.
- Weight: 67 lbs. (30 kg) with power feed and without cable.
- Dimensions: 24" deep x 18" wide x 38" high with handle folded down
- (61 cm x 46 cm x 96 cm).
- Drum: equipped with inner drum cage and distributor tube to prevent cable tangling under load.
- Quickly removable from frame.
- Wheels: 8" semi-pneumatic tires with oilite bronze bushings.
- Folding handle: reduces storage space.
- Cutter set: arrow head, boring gimlet, 2" side cutter blade, 1 1/2" u-cutter
- Motor: 1/3 HP with forward-off-reverse switch, spring loaded mounting for proper belt tension. (load speed 165 rpm).
- Belt guard: high impact plastic secured with a tension knob and shock mounting.
- Power cable feed: drives 1/2" and 3/8" cables.
- Cable guide tube: adds safety when you can"t get machine close to drain opening. 5 ft. Extension attaches to cable guide tube.
- Foot pedal: leaves operator"s hands free to control cable.
- Uses air pressure, so there"s no electrical contact between pedal and motor.
- Power cord: 10 ft. 3 wire. In-line ground fault circuit interrupter.
- Leather gloves: with reinforced palm for hand protection.
