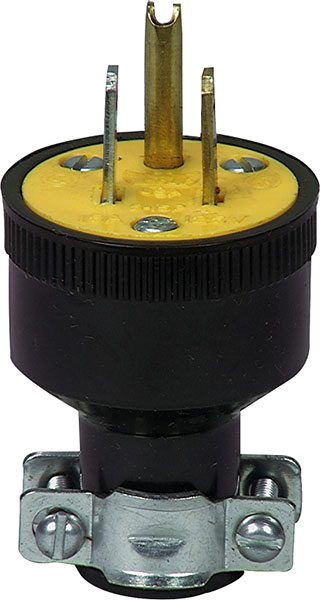

PLUG - 3 WIRE 15A HD BLACK MALE
1012300

PLUG - 3 WIRE 15A HD BLACK MALE

  • Cable/ Wire Size: 1/4 to 39/64 in
  • Color: Black
  • Current Rating: 15 A
  • Dimensions: 2 in L x 1.54 in W
  • Material: Thermoplastic
  • Mounting Type: Screw
  • N E M A Configuration: 5-15
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -20 to 60 deg C
  • Package Type: Box
  • Type: Straight Blade
  • Voltage Rating: 125 V

Please Login to see your pricing for this product.

Product Details

Meets all UL 498 requirements. Solid brass straight plug blades. Combination slot/Phillips head mounting and terminal screws. Temperature rating of -20 to 60 deg C. 15 A, 125 V. 1/4 to 39/64 in cord diameter. UL listed, CSA Certified. NEMA 5-15P.
  • Solid brass plug blades are firmly embedded in body
  • Thermoplastic rubber plugs and connectors maintain flexibility in extremely low temperatures
  • Terminals in individual chambers to positively insulate conductors
  • Terminal screw clamps are designed to contain wire and prevent binding
  • Terminal screws backed out ready for wiring
  • Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers

Additional Information

Part Number: 1012300
MFG Part Number:
Weight: 0.00 LB
Height: 0.00
Depth: 0.00
Width: 0.00
Size:
Product PDF:
Extra Details:
