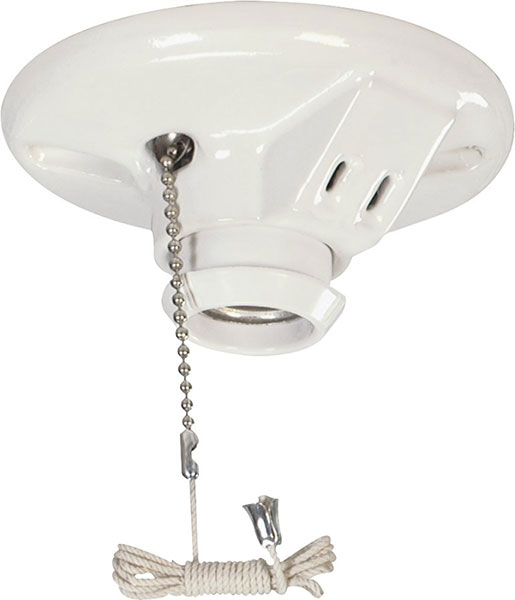

LAMPHOLDER - PORCELAIN PC w/OUTLET
1001464

LAMPHOLDER - PORCELAIN PC w/OUTLET

  • Base Type: Medium
  • Color: White
  • Connection Type: Screw
  • Dimensions: 4.5 in Dia x 2.14 in H
  • Mounting Type: Box
  • Voltage Rating: 125 VAC
  • Wattage Rating: 660 W
  • Wire Size: 14 to 10 AWG
  • Wiring Type: Top
Includes:
  • (2) Screws
  • (1) Ball Chain
  • (1) 3 ft Cord Connector
  • (1) End Bell

Please Login to see your pricing for this product.

Product Details

With 15 A 125 VAC outlet. High-strength insulator porcelain. Mounts on 4 in outlet boxes with breakout for 3-1/4 in box mounting. Pull chain socket interior is removable. Includes ball chain, 3 ft of cord, connector and end bell. Terminal screws are backed out ready for wiring without removing the interior. Dust ring protects against plaster and dirt. UL 496 listed, NOM certified, meets CSA requirements. 15 A, 125 V, 660 W.
  • Top wire versions have terminal screws backed out ready for wiring without removing interior
  • Push wire terminals are top wired with two push-in terminals and two screw terminals for continuous wiring
  • Plastic models made with high-temperature thermoset plastic to reduce breakage
  • Porcelain models made of high-strength insulator porcelain pull chain versions feature removable interiors
  • Mounts on 4 in outlet boxes with breakout for 3-1/4 in box mounting

Additional Information

Part Number: 1001464
MFG Part Number:
Weight: 0.00 LB
Height: 0.00
Depth: 0.00
Width: 0.00
Size:
Product PDF:
Extra Details:
