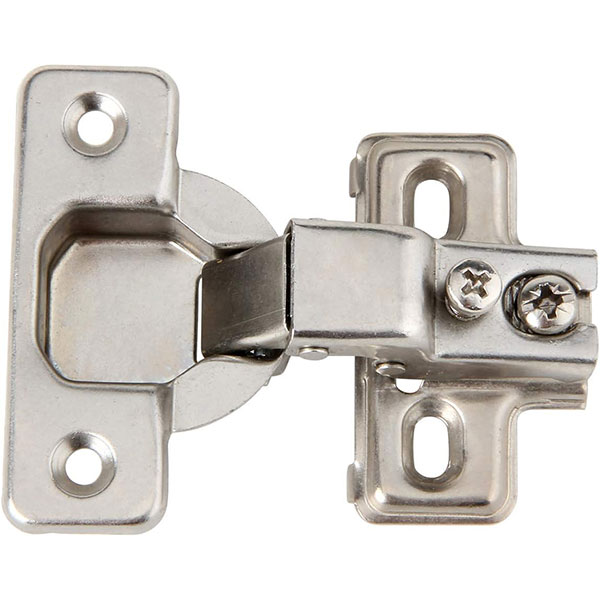

HINGE - CONCEALED CABINET 1/2"
1013885

HINGE - CONCEALED CABINET 1/2"

  • Made from steel with a steel satin nickel
  • Intended for use with face-frame style cabinets, 5/8" overlay, also adjustable to 1/2" overlay
  • Opening angel: 105 Degree. Edge of door to edge of hole dimension 1/4" or 6mm. The drilling Cup hole Diameter is 35mm

Please Login to see your pricing for this product.

Product Details

Silverline face frame 1/2" half overlay concealed euro 105deg regular closing compact cabinet hinges
  • Self Closing, Not Soft Closing
  • 35mm cup size, screw holes center to center is 45mm, for face frame style cabinet only
  • For face frame style cabinet

Additional Information

Part Number: 1013885
MFG Part Number:
Weight: 0.00 LB
Height: 0.00
Depth: 0.00
Width: 0.00
Size:
Product PDF:
Extra Details:
