1016057

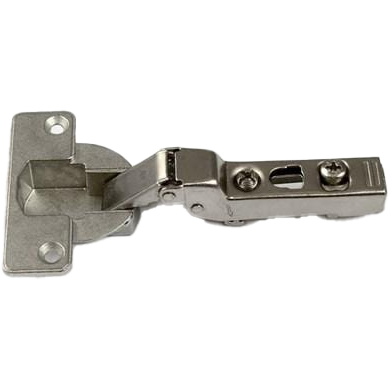

CABINET HINGE - F/O 40MM SELF CL
- Clip-On Self-Closing Concealed Hinges
- Cup Size: 1 9/16" Inches diameter x 1/2" Inch deep (40 mm diameter x 13 mm deep)
- Door Thickness: 3/4" Inch - 1 9/16" Inches (20 mm - 40 mm)
- Drive-in Bushings: 5/16" and 3/8"
- Boring distance from edge: 1/9" - 11/40" (3 mm - 7 mm)
- Overlays Available: Full, Half, Full Inset
- Finish: Nickel
- Open to 95°
- 6-way adjustable
Please Login to see your pricing for this product.
Product Details
These hinges are a great choice for doors up to 1 9/16" thick. The large cup (40 mm diameter x 13 mm) permits a larger turning radius to accommodate thicker, heavier doors. These self-closing, spring-loaded hinges open 95°, and are 6-way adjustable with drive in or screw on fastening. They feature instantaneous snap on, clip-on mounting. The hinges have been tested to surpass ANSI-BFMA-KCMA norms.
Additional Information
| Part Number: | 1016057 |
|---|---|
| MFG Part Number: | |
| Weight: | 0.00 LB |
| Height: | 0.00 |
| Depth: | 0.00 |
| Width: | 0.00 |
| Size: | |
| Product PDF: | |
| Extra Details: |
