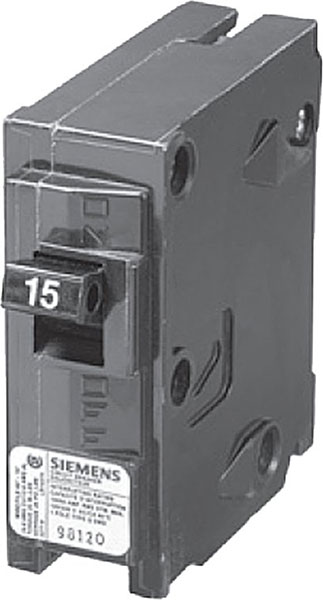

BREAKER - SINGLE POLE 15A
1001470

BREAKER - SINGLE POLE 15A

  • Actuator Type: Magnetic Thermal
  • Current Rating: 15 A
  • Dimensions: 3" L x 1" W x 3" H
  • Frame Size: 125 A
  • Frame Type: QP
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug-In
  • Number of Phases: 1
  • Number of Poles: 1
  • Operating Frequency: 50/60 Hz
  • Operating Temperature: 40 deg C
  • Terminal Type: Lug
  • Trip Type: Fixed
  • Type: Miniature
  • Voltage Rating: 120/240 V
  • Wire Size: 14 to 8 AWG

Please Login to see your pricing for this product.
You may also be interested in:
BREAKER - SINGLE POLE 30A
1001136 BREAKER - SINGLE POLE 30A

Product Details

Non-interchangeable trip. 120 VAC, 10,000 AIR. Will replace American Switch, Westinghouse Type BR, Bryant, Challenger, Sylvania, Crouse-Hinds, Murray, Frank Adams, General Electric (Full size only), General Switch, I-TE, Gould, Montgomery Ward and Sears. UL listed, HACR rated. 15 and 20 A UL listed for frequent switching applications, 120 VAC fluorescent lighting. 1 in per pole.

Additional Information

Part Number: 1001470
MFG Part Number:
Weight: 0.00 LB
Height: 0.00
Depth: 0.00
Width: 0.00
Size:
Product PDF:
Extra Details:
